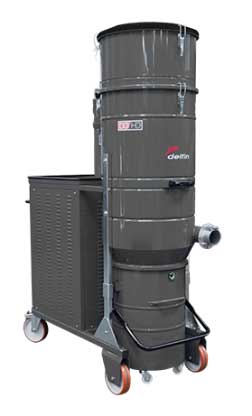

DG HD PN Industrial vacuum cleaner for extracting large volumes of dry dust

DG HD PN industrial vacuum cleaners are the perfect solution for sucking up enormous quantities of dry dust. The PN cleaning system consists of high surface area filter cartridges which are automatically and systematically cleaned by a reverse pulse filter cleaning system, thus eliminating the risk of build-up in the cartridge filters installed.

Advantages

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Pressure relief valve for motor protection
  • Vacuum gauge to detect filter clogging
  • Hour meter for planned maintenance
  • Star-triangle switchboard
  • Reduced downtime of machine tools
  • High filtration efficiency
  • Integrated automatic filter cleaning system

Datasheet

  • DG 200 PN
  • DG 300 PN
IndexUnitDG 200 PN
VoltageV – Hz400-50 3~
PowerkW18,5
Electrical protectionIP65
Max waterliftmmH2O4400
Max air flowm³/h1350
Suction inletmm120
Noise level (EN ISO 3744)dB(A)77
Filter TypeCartridge
Surface – Diametercm²-mm260.000
Material – EfficiencyIEC 60335-2-69Polyester – ANT M
Air load on filterm³/m²/h52
Cleaning systemAutomatic PN
Cartridge number4
Capacitylt.220
Dimensionscm92x220x220h
Weightkg685
Download technical sheet
IndexUnitDG 300 PN
VoltageV – Hz400-50 3~
PowerkW25
Electrical protectionIP65
Max waterliftmmH2O4500
Max air flowm³/h2050
Suction inletmm120
Noise level (EN ISO 3744)dB(A)77
Filter TypeCartridge
Surface – Diametercm²-mm260.000
Material – EfficiencyIEC 60335-2-69Polyester – ANT M
Air load on filterm³/m²/h79
Cleaning systemAutomatic PN
Cartridge number4
Capacitylt.220
Dimensionscm92x220x220h
Weightkg825
Download technical sheet
