175-300hp FourStroke – Excellence without compromise
Elevate your experience on the water with Mercury FourStroke outboards. Designed to deliver unsurpassed power and performance in an efficient, reliable package that’s built to please, the new FourStroke V8 and V6 outboards are the smallest and lightest in their class. They’re engineered to go the distance on a wide variety of boats, and to make every adventure all it should be.
Datasheet
300
250
225
200
175
ENGINE DETAILS
These robust motors deliver Mercury’s best-ever FourStroke hole shot, top speed and fuel efficiency. Great for aluminum fishing, deck, inflatable rigid hull, inshore fishing, offshore fishing and runabouts and tritoons.
SPECIFICATIONS – 300
HP / kW
300 / 224
Engine type
V8
MidSection
Conventional MidSection
Displacement (CID/CC)
279 CID
Displacement (L)
4.6L
Cylinder Configuration
V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
5200-6000
Air induction
Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
85-amp (1071 Watt) with Idle Charge
Recommended fuel
Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
Yes
Starting
Electric Start with SmartStart Protection
Controls
Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
Hydraulic (standard)
Power (optional)
Shaft length
20″ / 508 mm
25″ / 635 mm
Gearcase ratio
1.75:1
Dry weight *Lightest model available
527 lbs / 239 kgs
CARB star rating
3
Bore and stroke
3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
SmartCraft PCM 112 Digital Inductive
Cooling system
Water-cooled with thermostat
Gear shift
F-N-R
Gearcase options
5.44″
Trim system
Power trim and tilt
Exhaust system
Through prop
Counter Rotation
Available
Color
Cold Fusion White
Pearl Fusion White
Phantom Black
Warm Fusion White
Lubrication system
Integrated wet sump
Oil Capacity
7.0 Quarts / 6.6 Liters
Maximum Trim Range
20° (-6° to 14°)
Maximum Tilt Range
73° (-6° to 67°)

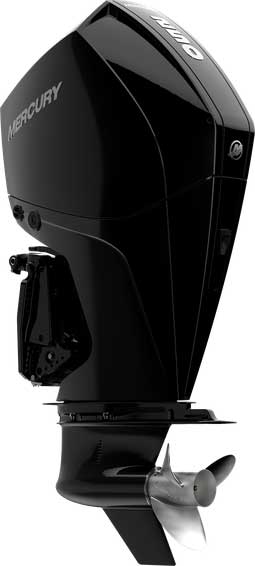

ENGINE DETAILS
Quick-revving double-overhead camshaft design and deep-breathing intake deliver thrilling and satisfying performance. Great for aluminum console, deck, inflatable rigid hull, inshore fishing, offshore fishing, and runabout boats and tritoons.
SPECIFICATIONS – 250
HP / kW
250 / 186
Engine type
V8
MidSection
Conventional MidSection
Displacement (CID/CC)
279 CID
Displacement (L)
4.6L
Cylinder Configuration
V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM
5200-6000
Air induction
Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
85-amp (1071 Watt) with Idle Charge
Recommended fuel
Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
Yes
Starting
Electric Start with SmartStart Protection
Controls
Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
Big Tiller (optional)
Hydraulic (standard)
Power (optional)
Shaft length
20″ / 508 mm
25″ / 635 mm
30″ / 762 mm
Gearcase ratio
1.75:1
Dry weight *Lightest model available
527 lbs / 239 kgs
CARB star rating
3
Bore and stroke
3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
SmartCraft PCM 112 Digital Inductive
Cooling system
Water-cooled with thermostat
Gear shift
F-N-R
Gearcase options
5.44″
Trim system
Power trim and tilt
Exhaust system
Through prop
Counter Rotation
Available
Color
Cold Fusion White
Pearl Fusion White
Phantom Black
Warm Fusion White
Lubrication system
Integrated wet sump
Oil Capacity
7.0 Quarts / 6.6 Liters
Maximum Trim Range
20° (-6° to 14°)
Maximum Tilt Range
73° (-6° to 67°)
ENGINE DETAILS
The undisputed pound-for-pound champ – the lightest in its class by nearly 60 pounds! Great for aluminum console, deck, fish & ski, inflatable rigid hull, inshore fishing, multi-species fishing, and runabout boats and tritoons.
SPECIFICATIONS – 225
HP / kW
225 / 168
Engine type
V6
MidSection
Conventional MidSection
Displacement (CID/CC)
209 CID
Displacement (L)
3.4L
Cylinder Configuration
V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM
5200-6000
Air induction
Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
85-amp (1071 Watt) with Idle Charge
Recommended fuel
Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
Yes
Starting
Electric Start with SmartStart Protection
Controls
Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
Big Tiller (optional)
Hydraulic (standard)
Joystick Piloting for Outboards
Power (optional)
Shaft length
20″ / 508 mm
25″ / 635 mm
30″ / 762 mm
Gearcase ratio
1.85:1
Dry weight *Lightest model available
475 lbs / 216 kgs
CARB star rating
3
Bore and stroke
3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
SmartCraft PCM 112 Digital Inductive
Cooling system
Water-cooled with thermostat
Gear shift
F-N-R
Gearcase options
4.8″
Trim system
Power trim and tilt
Exhaust system
Through prop
Counter Rotation
Available
Color
Cold Fusion White
Pearl Fusion White
Phantom Black
Warm Fusion White
Lubrication system
Integrated wet sump
Oil Capacity
7.0 Quarts / 6.6 Liters
Maximum Trim Range
20° (-6° to 14°)
Maximum Tilt Range
73° (-6° to 67°)

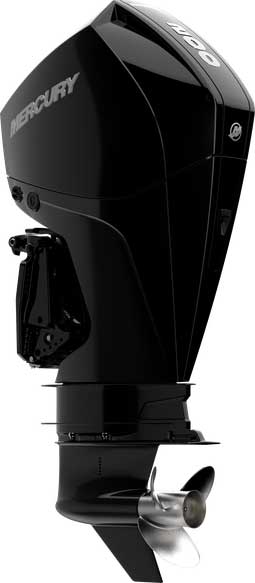

ENGINE DETAILS
Up to 30% quieter with 50% less vibration than the competition for Verado-like smoothness. Great for aluminum console, deck, fish & ski, inflatable rigid hull, inshore fishing, multi-species fishing, and runabout boats, and tritoons.
SPECIFICATIONS – 200
HP / kW
200 / 149
Engine type
V6
MidSection
Conventional MidSection
Displacement (CID/CC)
209 CID
Displacement (L)
3.4L
Cylinder Configuration
V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM
5000-5800
Air induction
Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
85-amp (1071 Watt) with Idle Charge
Recommended fuel
Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
Yes
Starting
Electric Start with SmartStart Protection
Controls
Remote Mechanical or Digital Throttle & Shift (DTS)
Steering
Big Tiller (optional)
Hydraulic (standard)
Joystick Piloting for Outboards
Power (optional)
Shaft length
20″ / 508 mm
25″ / 635 mm
Gearcase ratio
1.85:1
Dry weight *Lightest model available
475 lbs / 216 kgs
CARB star rating
3
Bore and stroke
3.6 in x 3.4 in / 92 mm x 86 mm
Ignition
SmartCraft PCM 112 Digital Inductive
Cooling system
Water-cooled with thermostat
Gear shift
F-N-R
Gearcase options
4.8″
Trim system
Power trim and tilt
Exhaust system
Through prop
Counter Rotation
Available
Color
Cold Fusion White
Pearl Fusion White
Phantom Black
Warm Fusion White
Lubrication system
Integrated wet sump
Oil Capacity
7.0 Quarts / 6.6 Liters
Maximum Trim Range
20° (-6° to 14°)
Maximum Tilt Range
73° (-6° to 67°)
ENGINE DETAILS
Available with mechanical or digital controls, providing more options in new-boat and repower applications. Great for aluminum console, deck, fish & ski, inflatable rigid hull, inshore fishing, and runabout bow boats and pontoons.
SPECIFICATIONS – 175
HP / kW
175 / 130
Engine type
V6
MidSection
Conventional MidSection
Displacement (CID/CC)
209 CID
Displacement (L)
3.4L
Cylinder Configuration
V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM
5000-5800
Air induction
Performance-Tuned Long-Runner Intake Manifold
Fuel induction system
Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt
85-amp (1071 Watt) with Idle Charge
Recommended fuel
Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil
NMMA Certified FCW SAE 10W-30
Engine protection operator warning system
SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
Yes
Starting
Electric Start with SmartStart Protection
Controls
Remote Mechanical or Digital Throttle & Shift (DTS)
