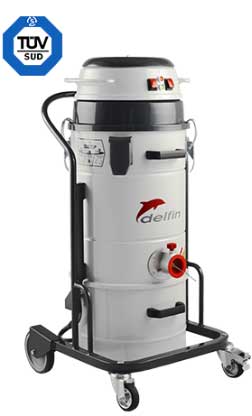

202 DS TUV Tüv süd certified industrial vacuum cleaner for fine dust extraction in class m & h

The TÜV 202DS vacuum cleaner has achieved certification by the TÜV SÜD independent certifying body for its completely safe handling of dust extraction. The certification covers the entire machine, including filters and accessories, and guarantees excellent filtration quality, including the presence of fine dust particles.

Advantages

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Tangential suction inlet with integrated separation cyclone
  • Extractable collection container with optional use of disposable bags
  • Two powerful by pass motors with independent cooling
  • Compact and mobile
  • Easy filter replacement
  • Additional HEPA filter (99,995% on 0,18 micron) included
  • Accessory kit as standard
  • Easily removable container for safe disposal of collected material
  • TUV certification of suitability for the suction of fine and toxic powders, in compliance with dust classes H (European standards DIN -EN 60335-2-69 / 2015 and IEC 60335-2-69 / 2012).

Datasheet

  • 202 DS TUV H
  • 202 DS TUV M
Index Unit 202 DS TUV H
Voltage V – Hz 230 – 50
Power kW 2,3
Max waterlift mmH2O 2500
Max air flow m³/h 360
Suction inlet mm 50
Noise level (EN ISO 3744) dB(A) 76
Filter Type Cartridge
Surface – Diameter cm²-mm 30.000 – 360
Material – Efficiency IEC 60335-2-69 Polyester – M
Air load on filter m³/m²/h 120
Cleaning system Dustop
Discharge system Roll-out container
Capacity lt. 20
Dimensions cm 59x48x110h
Weight kg 35
Index Unit 202 DS TUV M
Voltage V – Hz 230 – 50
Power kW 2,3
Max waterlift mmH2O 2500
Max air flow m³/h 360
Suction inlet mm 50
Noise level (EN ISO 3744) dB(A) 76
Filter Type Cartridge
Surface – Diameter cm²-mm 30.000 – 360
Material – Efficiency IEC 60335-2-69 Polyester – M
Air load on filter m³/m²/h 120
Cleaning system Dustop
Discharge system Roll-out container
Transport capacity kg/h 20
Dimensions cm 59x48x110h
Weight kg 35
