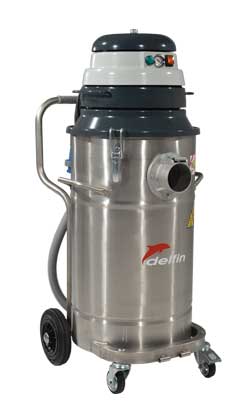

In the single-phase version, a powerful, maintenance-free, brushless motor generates high vacuum levels in a machine that is also easy to handle. In the three-phase version a powerful side channel blower makes continuous duty vacuuming possible, without any loss in performance.
| Index | Unit | 802BL |
|---|---|---|
| Atex zones | 22 | |
| Marking | EX II 3D T135°C | |
| Voltage | V – Hz | 230 -50 |
| Power | kW | 1,1 |
| Max waterlift | mmH2O | 2250 |
| Max air flow | m³/h | 215 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 74 |
| Motor cooling filter | CAT | 2x E10 |
| Air exhaust filter | CAT | E10 |
| Filter Type | Bag | |
| Surface – Diameter | cm²-mm | 8.000-420 |
| Material – Efficiency | IEC 60335-2-69 | PPL + ANT M |
| Capacity | lt. | 80 |
| Dimensions | cm | 51x59x116 |
| Weight | kg | 40 |
