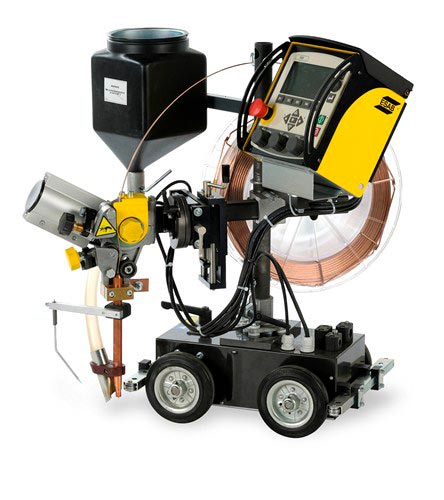

A2 Multitrac A2TF ( SAW ) The universal welding automat for Submerged-Arc Welding

A2 Multitrac is designed to put your Submerged-Arc Welding operation on the right track to increase both the productivity and the quality.



The compact and efficient design makes it easy to move and to set up the A2 Multitrac between different welding workpieces. The mechanical compo- nents are very reliable, even under hard working conditions. Feedback systems on the wire feed and travel unit secures a very good welding result. The A2 Multitrac is designed to be used with LAF or TAF welding power sources.

Datasheet

  • A2 Multitrac A2TF ( SAW ) The universal welding automat for Submerged-Arc Welding

Capacities and Temperatures

ModelFlux CapacityWire Feed SpeedWire Spool Capacity
GMAW16 m/min60 lb
30 kg
MTW600 (GMAW)25 m/min2×33 lb
2×15 kg
Single SAW1.4 gal
6 l
354 in./min
9 m/min
60 lb
30 kg
Twin SAW1.4 gal
6 l
354 in./min
9 m/min
2×33 lb
2×15 kg

Power Requirements

ModelMax Current
GMAW600 A
SAW800 A

Weights & Dimensions

ModelGMAWSAW
Height828 mm828 mm
Length527 mm527 mm
Weight43 kg47 kg
Width375 mm375 mm

Welding Speeds

Travel Speed0.1-2.0 m/min (4-79 in./min)

Wire Dimensions

ModelMetal TypeWire Diameter
GMAWSteel0.8-1.6 mm
GMAWStainless Steel0.8-1.6 mm
GMAWCored Wire1.2-2.4 mm
GMAWAluminum1.2-1.6 mm
MTW600 (GMAW)Steel0.8-1.6 mm
MTW600 (GMAW)Stainless Steel0.8-1.6 mm
MTW600 (GMAW)Cored Wire1.2-1.6 mm
MTW600 (GMAW)Aluminum1.2-2.0 mm
Single SAWSteel1.6-4.0 mm
Single SAWStainless Steel1.6-4.0 mm
Single SAWCored Wire1.6-4.0 mm
Single SAWAluminum
Twin SAWSteel2×1.2-2.5 mm
Twin SAWStainless Steel2×1.2-2.5 mm
Twin SAWCored Wire
Twin SAWAluminum
