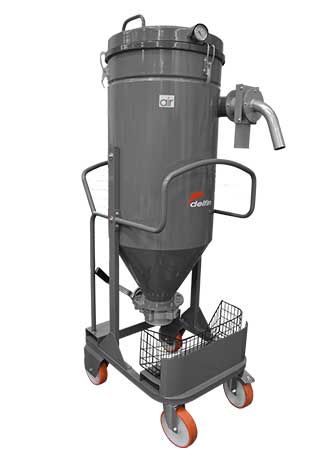

The AIR 200 is an industrial compressed air vacuum designed to recover large quantities (200 litre capacity) of high specific gravity material, such as sand in sandblasting and shots in shot-peening. Powerful Venturi vacuum unit powered by compressed air, polyester cartridge filter with Self Clean system to protect the motor, and integrated butterfly discharge valve for complete and quick discharge make it the ideal solution for the sandblasting and shot peening industry. Easy to handle and lift thanks to its forklift ready design.
Index | Unit | AIR 200 |
---|---|---|
Air supply | lt/min | 2100 |
Air supply pressure | bar | 6 |
Ø Air supply hose | mm | 10 |
Max waterlift | mmH2O | 5000 |
Max air flow | m³/h | 530 |
Suction inlet | mm | 50 |
Noise level (EN ISO 3744) | dB(A) | 76 |
Filter Type | Cartridge | |
Surface – Diameter | cm²-mm | 36.000 – 560 |
Material – Efficiency | IEC 60335-2-69 | Polyester – M |
Cleaning system | SELF CLEAN | |
Discharge system | Butterfly valve | |
Capacity | lt. | 200 |
Dimensions | cm | 77x68x198h |
Weight | kg | 105 |
Index | Unit | AIR 201 |
---|---|---|
Air supply | lt/min | 2500 |
Air supply pressure | bar | 6 |
Ø Air supply hose | mm | 10 |
Max waterlift | mmH2O | 5000 |
Max air flow | m³/h | 590 |
Suction inlet | mm | 50 |
Noise level (EN ISO 3744) | dB(A) | 76 |
Filter Type | Cartridge | |
Surface – Diameter | cm²-mm | 36.000 – 560 |
Material – Efficiency | IEC 60335-2-69 | Polyester – M |
Cleaning system | SELF CLEAN | |
Discharge system | Butterfly valve | |
Capacity | lt. | 200 |
Dimensions | cm | 77x68x198h |
Weight | kg | 110 |
