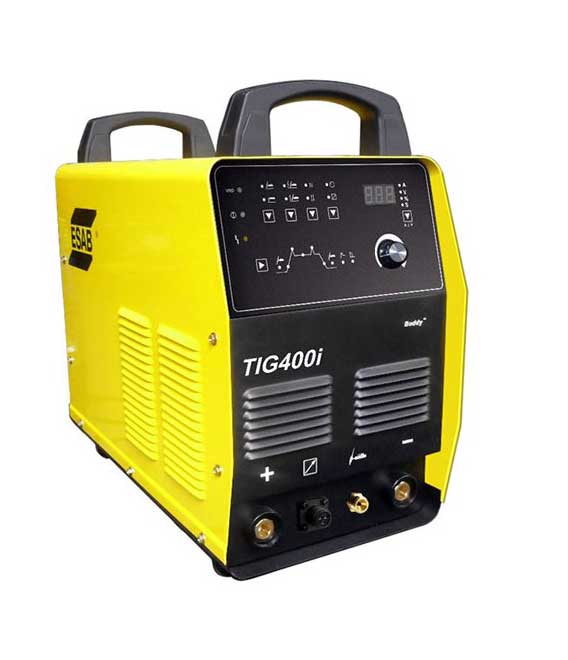

Buddy Tig 400i

Robust and powerful



The Buddy™ Tig 400i is an industrial-duty, fan cooled, inverter controlled power sources meant for TIG/MMA welding with professional welding performance. XA00159220



TIG Welding

The Buddy™ TIG machines are capable of performing TIG welding with precise current control. Select a TIGtorch to suit your needs, a gas regulator and a cylinder of gas. You can weld mild steel or stainless steel material with or without filler material.


  • DC Pulse welding
  • HF / Lift Arc starting
  •  2t/4t trigger control
  • Pre/Post gas control
  • Slope up/down control
  • Initial and crater current settings


MMA Welding



A wide current range and powerful welding performance make the Buddy™ Tig machines suitable for a wide range of applications and electrode types such as:

- General purpose

- Low-hydrogen

- Stainless steel

- Cellulosic



The machine has controlled welding dynamics with adjustable Hot Start and Arc Force controls that provide excellent weld properties even for welding pipe root passes.

Datasheet

  • Buddy Tig 400i

Dimensions

Height 510 mm
Length 540 mm
Width 280 mm

Fuse Specifications

Fuse Slow – Amps 32 A

Power Specifications

Power Factor at Maximum Current >0.90
Efficiency at Maximum Current >80 %

Specifications

Application Classification S
Operating Temp -10 to 40 °C
Standards IEC 60974-1; IEC60974-10

Weight

Weight 32.5 kg

Welding Output

Duty Cycle 40 %
Output Voltage 36 VDC
Welding Process Stick (MMA)
Duty Cycle 60 %
Output Voltage 32.4 VDC
Welding Process Stick (MMA)
Duty Cycle 40 %
Output Voltage 26 VDC
Welding Process TIG (GTAW)
Duty Cycle 60 %
Output Voltage 22.4 VDC
Welding Process TIG (GTAW)

Download technical sheet
