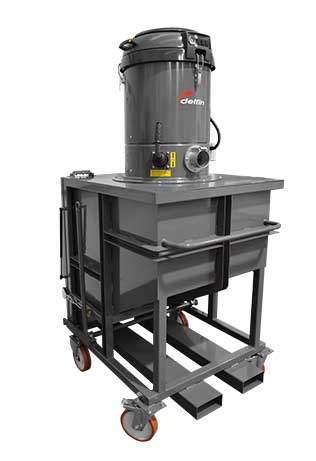

C600M Vacuum separator for very large quantitites of material

The C600 vacuum separator has an enormous solids collection capacity. The hopper has a lever-operated front opening to allow vacuumed material to be quickly and completely disposed of. Forkliftable ready, and featuring large polyester filter with built-in manual cleaning system. Suction generated by 3 powerful single-phase by-pass motors.

Advantages

  • Integrated filter cleaning system
  • Complete steel construction
  • Three powerful by pass motors with independent cooling
  • Low noise level
  • Compact and mobile
  • Suitable for high specific weight material
  • Modularity is guaranteed to fulfil the client’s needs
  • Full customization for specific needs

Datasheet

  • C600 M
Index Unit C600 M
Voltage V – Hz 230 – 50
Power kW 3,45
Max waterlift mmH2O 2.500
Max air flow m³/h 540
Suction inlet mm 80
Noise level (EN ISO 3744) dB(A) 76
Filter Type Star
Surface – Diameter cm²-mm 30.000 – 360
Material – Efficiency IEC 60335-2-69 Polyester – L
Air load on filter m³/m²/h 270
Cleaning system Manual
Discharge system Frontal discharge
Capacity lt. 600
Dimensions cm 98x125x224h
Weight kg 320
