Portable Cutting Solution

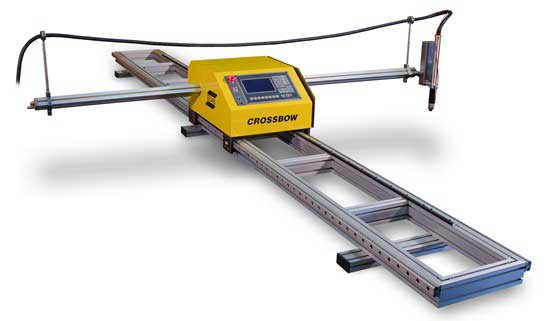

Crossbow is compact and lightweight for easy transport as your application requires.  It’s small size makes it ideal for small fabrication shops, maintenance and repair shops, trade schools, or for portable use within large facilities and construction sites.


Economical Cutting Solution

Automated functions and a user friendly CNC provide powerful, versatile, oxy-fuel or plasma processing in a value-minded package.  Precision guide rail enables stable motion of the crossbeam and full support of the cutting torch for accurate, reliable performance. Precision linear rails minimize vibration during cutting to ensure accurate cutting over the entire working envelope.

Flexible Process Solution

Crossbow can be equipped with plasma, oxy-fuel, or both. With plasma cut mild steel or aluminium up to 20 mm (3/4 in.), or stainless steel up to 15 mm (5/8 in.). Using oxy-fuel cut mild steel up to 100 mm (4 in.) thick. It’s simple, menu driven interface makes operation easy to learn and use. The CNC features a comprehensive library of 24 common shapes which minimize programming and set-up time.  Dimensions are easily edited to create custom shapes without additional programming. Custom programs are supported through basic M- and G-Code programming, and off-line programmed NC files can be transferred to the machine using a standard USB connection.


  • Crossbow

Cutting Specifications

ModelCutting Length
4×448 in.
1,220 mm
5×10120 in.
3,100 mm


Overall Cross Bar Length

Length93 in. (2362 mm)

Overall Track Length

Length157 in. (4000 mm)

Overall Dimensions (CNC Drive Unit)

Height16.5 in. (420 mm)
Length23.6 in. (600 mm)
Width18.1 in. (460 mm)


Weight211 lb (95.9 kg)

Download technical sheet
