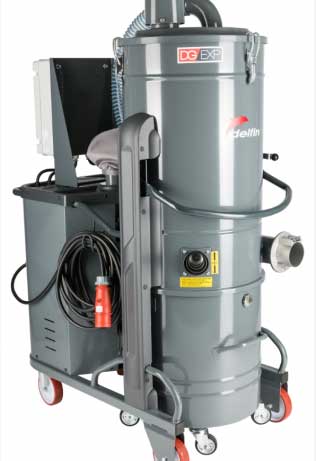

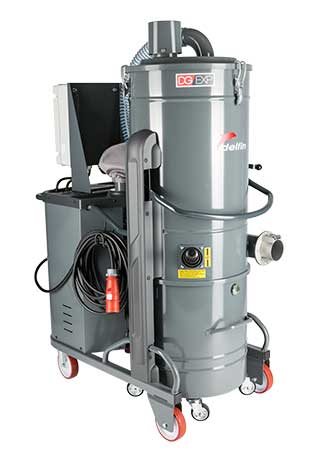

DG 75 Compact yet powerful industrial vacuum cleaner for heavy and continuous applications

The DG75 vacuum cleaner combines the high suction performance of models from the heavy duty line with the compactness of the three-phase intermediate series. Superior performance of the side channel blower, enlarged surface of the polyester filter and excellent capacity for solid and liquid collection are what make the DG75 special. The handy manual filter shaker helps to ensure maximum suction performance at all times, even in continuous duty or use in centralised systems. Also available in ATEX certificated version.

Advantages

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Pressure relief valve for motor protection
  • Vacuum gauge to detect filter clogging
  • Easy filter replacement
  • Reduced downtime of machine tools
  • High filtration efficiency
  • Full customization for specific needs

Datasheet

  • DG 75
Index Unit DG 75
Voltage V – Hz 400-50 3~
Power kW 7,5
Electrical protection IP 55
Max waterlift mmH2O 4000
Max air flow m³/h 530
Suction inlet mm 80
Noise level (EN ISO 3744) dB(A) 76
Filter Type Star
Surface – Diameter cm²-mm 49.500-500
Material – Efficiency IEC 60335-2-69 Polyester – L
Air load on filter m³/m²/h 108
Cleaning system Manual
Discharge system Roll-out container
Capacity lt. 100
Dimensions cm 66X118X175H
Weight kg 170
