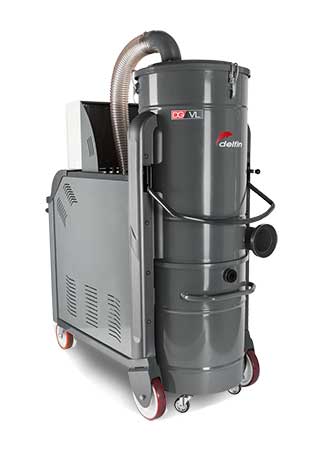

DG VL Industrial vacuum cleaner for heavy and continuous applications

DG VL series industrial vacuum cleaners are resistant and powerful, ideal for sucking up large mixed quantities of solid and liquid material in continuous applications or installed on centralised extraction systems. The powerful side channel blower generates high levels of vacuum, making these vacuum cleaners suitable for extracting any type of material. The large surface polyester filter (different classes of filter available for specific applications) and practical built-in Selfclean system (activated by a compressor installed on the machine) guarantee a long working life. The ease with which it can be picked up by a standard forklift ensures simple and safe handling even when the container is full. DG VL vacuum cleaners are also available in an Atex certified version.

Advantages

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Pressure relief valve for motor protection
  • Vacuum gauge to detect filter clogging
  • Low noise level

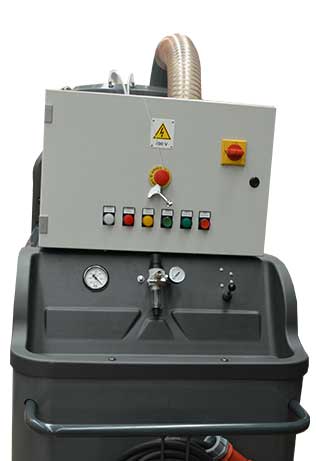

  • Star-triangle switchboard
  • Easy filter replacement
  • Simultaneous suction of solid, dust and liquid material
  • Fork lift intakes included
  • Filter-shaking cleaning system with compressor for Self Clean

Datasheet

  • DG VL 75
  • DG VL 110
  • DG VL 125
  • DG Vl 185
Index Unit DG VL 75
Voltage V – Hz 400 – 50
Power kW 7,5
Electrical protection IP 55
Max waterlift mmH2O 4500
Max air flow m³/h 750
Suction inlet mm 120
Noise level (EN ISO 3744) dB(A) 72
Filter Type Star
Surface – Diameter cm²-mm 70.000 – 560
Material – Efficiency IEC 60335-2-69 Polyester – L
Air load on filter m³/m²/h 107
Cleaning system SELF CLEAN
Discharge system Roll-out container
Capacity lt. 160
Dimensions cm 180x77x200h
Weight kg 200
Index Unit DG VL 110
Voltage V – Hz 400 – 50
Power kW 11
Electrical protection IP 55
Max waterlift mmH2O 4.000
Max air flow m³/h 1.000
Suction inlet mm 120
Noise level (EN ISO 3744) dB(A) 75
Filter Type Star
Surface – Diameter cm²-mm 70.000 – 560
Material – Efficiency IEC 60335-2-69 Polyester – L
Air load on filter m³/m²/h 157
Cleaning system SELF CLEAN
Discharge system Roll-out container
Capacity lt. 160
Dimensions cm 180x77x200h
Weight kg 220
Index Unit DG VL 125
Voltage V – Hz 400-50 3~
Power kW 12,5
Electrical protection IP 65
Max waterlift mmH2O 2900
Max air flow m³/h 1100
Suction inlet mm 120
Noise level (EN ISO 3744) dB(A) 75
Filter Type Star
Surface – Diameter cm²-mm 70.000 – 560
Material – Efficiency IEC 60335-2-69 Polyester – L
Air load on filter m³/m²/h 157
Cleaning system SELF CLEAN
Discharge system Roll-out container
Capacity lt. 160
Dimensions cm 180x77x200h
Weight kg 220
Index Unit DG VL 185
Voltage V – Hz 400-50 3~
Power kW 18,5
Electrical protection IP 65
Max waterlift mmH2O 4000
Max air flow m³/h 1350
Suction inlet mm 120
Noise level (EN ISO 3744) dB(A) 76
Filter Type Star
Surface – Diameter cm²-mm 70.0000
Material – Efficiency IEC 60335-2-69 Polyester – L
Air load on filter m³/m²/h 192
Cleaning system SELF CLEAN
Discharge system Roll-out container
Capacity lt. 160
Dimensions cm 180x77x200h
Weight kg 265
