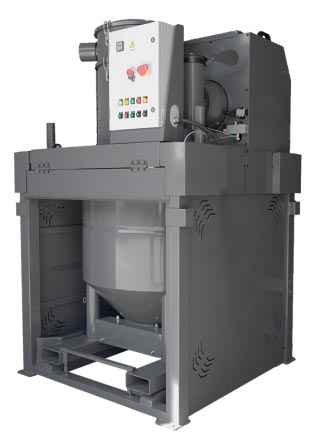

High performance mobile industrial vacuum cleaner with lobe pump mounted on a removable container.

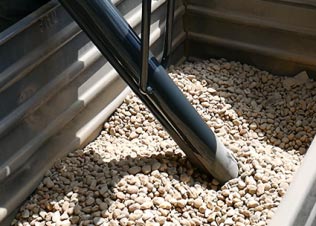

Its exceptional suction performance makes it ideal for continuous, heavy duty use in working conditions typical of heavy industry where there are large quantities of material to be vacuumed,
The filtering system comprises a star filter and polyester safety cartridge to protect the pump.Automatic filter cleaning is carried out by a Self Clean shaker filter and actuated by the on board compressor.

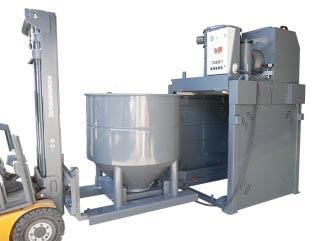

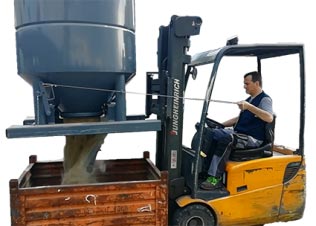

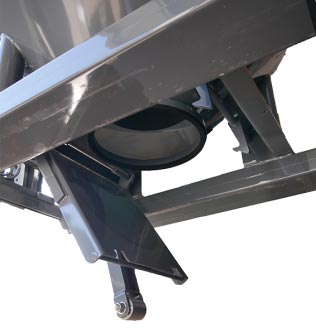

The collection container can be removed by pneumatically lifting the unit and emptied from the bottom via a large tilting door with lever. It closes automatically when the container is lowered to the ground.
Large inspection doors allow easy access to the engine compartment, while eyebolts make it easy to handle the unit by forklift. Available in Atex-certified version.
Index | Unit | DHV 22 COMPACT |
---|---|---|
Voltage | V – Hz | 400 – 50 |
Power | kW | 22 |
Electrical protection | IP | 55 |
Max waterlift | mmH2O | 5000 |
Max air flow | m³/h | 1300 |
Suction inlet | mm | 100 |
Filter Type | Star | |
Surface – Diameter | cm²-mm | 70.000 – 560 |
Material – Efficiency | IEC 60335-2-69 | M – PTFE |
Cleaning system | SELF CLEAN | |
Secondary filter | Safety cartridge | |
Surface | cm² | 70.000 |
Capacity | lt. | 1000 |
Discharge type | Forkable container | |
Dimensions | cm | 160x152x253h |
Weight | kg | 1260 |
