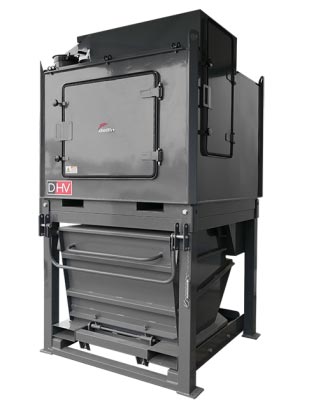

High performance mobile industrial vacuum cleaner with lobe pump and mounted on a removable container.
The filtering system is composed of filtering sleeves in polyester felt with internal tensioning springs, polyester safety cartridge to protect the pump. Timed automatic system for cleaning the filters through chamber flushing valves. Compressed air for valve operation is provided by a compressor installed on the machine.

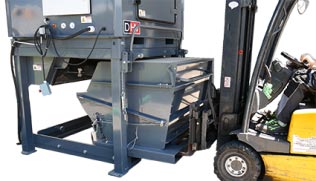

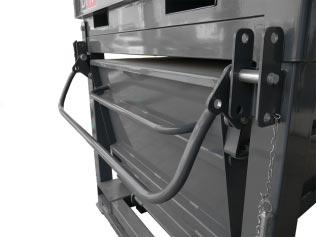

The collection container can be removed by lifting the appropriate safety device and can be downloaded from the bottom via a large tilting door operated by a lever. The door is closed automatically by lowering the container to the ground.
Large inspection doors allow easy access to the engine compartment, while eyebolts facilitate the handling of the unit by forklift.
A push-button panel allows you to conveniently operate the vacuum cleaner without having to go directly to the electrical panel.
Available in Atex certified version.
Legend | Unit | DHV 30 AF TANK |
---|---|---|
Supply | V – Hz | 400 – 50 |
Power | kW | 30 |
Electrical protection | IP | 55 |
Maximum depression | mmH2O | 5000 |
Maximum air flow rate | m³ / h | 1800 |
Ø filler | mm | 140 |
Type of filter | 30 Filtering sleeves | |
Surface – Diameter | cm²-mm | 160,000 – 120 |
Filter media – Class | IEC 60335-2-69 | Polyester – M |
Cleaning system | Automatic | |
Additional filter | Security cartridge | |
Surface | cm² | 70,000 |
Capacity | lt. | 800 |
Type of discharge | Forkable container | |
dimensions | cm | 168x160x291h |
Weight | kg | 2320 |
Legend | Unit | DHV 30 HV TANK |
---|---|---|
Supply | V – Hz | 400 – 50 |
Power | kW | 30 |
Electrical protection | IP | 55 |
Maximum depression | mmH2O | 8500 |
Maximum air flow rate | m³ / h | 1300 |
Ø filler | mm | 140 |
Type of filter | 30 Filtering sleeves | |
Surface – Diameter | cm²-mm | 160,000 – 120 |
Filter media – Class | IEC 60335-2-69 | Polyester – M |
Cleaning system | Automatic | |
Additional filter | Security cartridge | |
Surface | cm² | 70,000 |
Capacity | lt. | 800 |
Type of discharge | Forkable container | |
dimensions | cm | 168x160x291h |
Weight | kg | 2340 |
Legend | Unit | DHV 45 AF TANK |
---|---|---|
Supply | V – Hz | 400 – 50 |
Power | kW | 45 |
Electrical protection | IP | 55 |
Maximum depression | mmH2O | 5000 |
Maximum air flow rate | m³ / h | 2500 |
Ø filler | mm | 140 |
Type of filter | 30 Filtering sleeves | |
Surface – Diameter | cm²-mm | 160,000 – 120 |
Filter media – Class | IEC 60335-2-69 | Polyester – M |
Cleaning system | Automatic | |
Additional filter | Security cartridge | |
Surface | cm² | 70,000 |
Capacity | lt. | 800 |
Type of discharge | Forkable container | |
dimensions | cm | 168x160x291h |
Weight | kg | 2480 |
Legend | Unit | DHV 45 HV TANK |
---|---|---|
Supply | V – Hz | 400 – 50 |
Power | kW | 45 |
Electrical protection | IP | 55 |
Maximum depression | mmH2O | 8500 |
Maximum air flow rate | m³ / h | 1900 |
Ø filler | mm | 140 |
Type of filter | 30 Filtering sleeves | |
Surface – Diameter | cm²-mm | 160,000 – 120 |
Filter media – Class | IEC 60335-2-69 | Polyester – M |
Cleaning system | Automatic | |
Additional filter | Security cartridge | |
Surface | cm² | 70,000 |
Capacity | lt. | 800 |
Type of discharge | Forkable container | |
dimensions | cm | 168x160x291h |
Weight | kg | 2570 |
