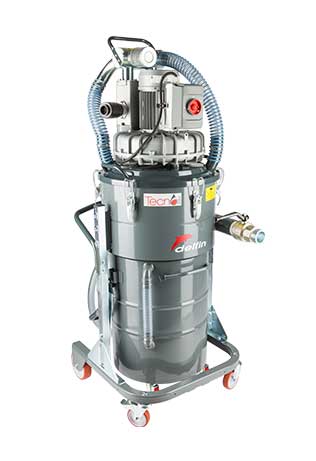

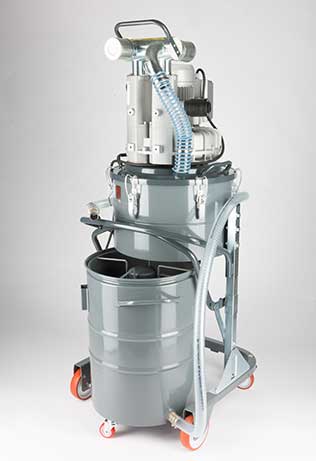

TC100 IF Vacuum cleaner for separating swarfs and recycling lubricating oils

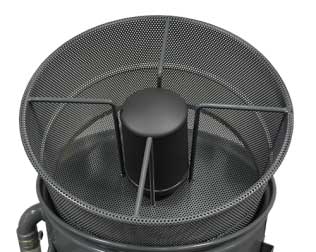

The TC100 IF vacuum cleaner is a powerful three-phase vacuum equipped with a side channel blower, designed specifically for the mechanical industry and maintenance of CNC machine tools. Coolant liquids and emulsions can be suctioned continuously, even 24 hours a day, separating off any metal chips or swarfs and allowing the vacuumed liquid to be reused. This can mean significant savings in terms of money and time spent servicing machinery. 100 litre liquid capacity, 40 litre sieve grid basket for metal chips and rapid discharge of liquid via reversed airflow.

Advantages

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Tangential suction inlet with integrated separation cyclone
  • Vacuum gauge to detect filter clogging
  • Compact and mobile
  • Easy filter replacement
  • PPL filter for protection of motors from liquids and foam
  • Foam filter for protection of motors from liquid mist

Datasheet

  • TECNOIL 100IF TR
Index Unit TECNOIL 100IF TR
Voltage V – Hz 400 – 50
Power kW 3
Max waterlift mmH2O 3.000
Max air flow m³/h 300
Noise level (EN ISO 3744) dB(A) 78
Filter Type 3D SuperWeb
Media – Filtration Polypropylene – 20μm
Discharge system Reverse flow
Liquids capacity lt. 100
Solids capacity lt. 40
Discharge speed lt / min 200
Floating device Yes
Dimensions cm 67x66x135h
Weight kg 95
