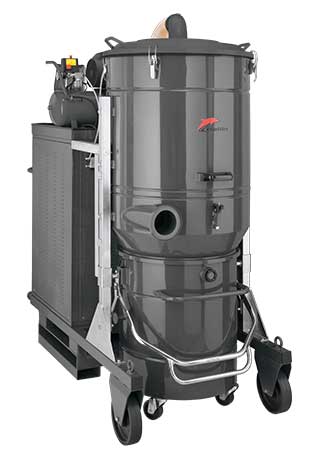

DG HD High power industrial vacuum cleaners for solids, liquids and dust

All the power of a high headed side channel blower, built-in automatic cleaning system and extremely high suction pressure; these are just some of the reasons why DG HD industrial vacuum cleaners are not just simple industrial vacuums, but veritable tools for handling or removing large amounts of material. DG machine models can increase the efficiency andproductivity of any heavy industry, from cement factories to foundries. Wherever there are large and heavy amounts of materials (evenseveral cubic meters), this vacuum cleaner will make all the difference. Best when used as vacuum units in a centralised vacuum systemin combination with Delfin’s filtering and separating units.

Advantages

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Pressure relief valve for motor protection
  • Vacuum gauge to detect filter clogging
  • Star-triangle switchboard
  • High filtration efficiency
  • Suitable for high specific weight material
  • Fork lift intakes included

Datasheet

  • DG 200
  • DG 300 HD
IndexUnitDG 200
VoltageV – Hz400-50 3~
PowerkW18,5
Electrical protectionIP65
Max waterliftmmH2O4400
Max air flowm³/h1350
Suction inletmm120
Noise level (EN ISO 3744)dB(A)77
Filter TypeStar
Surface – Diametercm²-mm120.000 – 780
Material – EfficiencyIEC 60335-2-69Polyester – L
Air load on filterm³/m²/h112

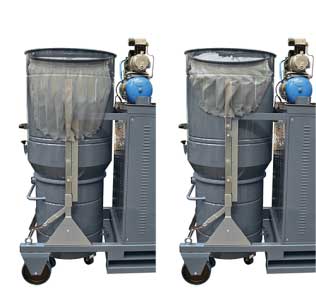

Cleaning systemAutomatic AUT
Capacitylt.220
Dimensionscm92x220x220h
Weightkg660
IndexUnitDG 300 HD
VoltageV – Hz400-50 3~
PowerkW25
Electrical protectionIP65
Max waterliftmmH2O4500
Max air flowm³/h2200
Suction inletmm120
Noise level (EN ISO 3744)dB(A)78
Filter TypeStar
Surface – Diametercm²-mm120.000-780
Material – EfficiencyIEC 60335-2-69Polyester – L
Air load on filterm³/m²/h171
Cleaning systemAutomatic AUT
Capacitylt.220
Dimensionscm92x220x220h
Weightkg805
